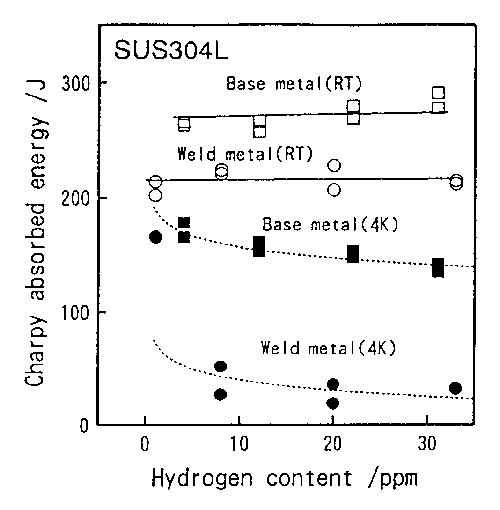

Fig.1 Effect hydrogen charging on charpy absorbed energy of SUS304L steels

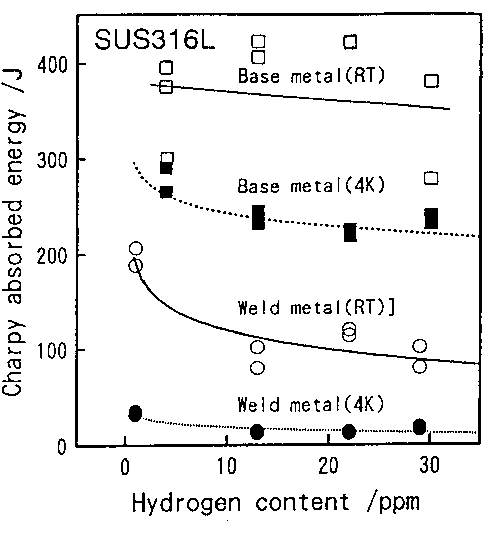

Fig.2 Effect hydrogen charging on charpy absorbed energy of SUS316L steels

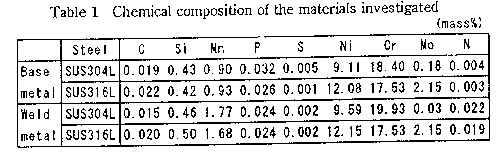

Table.1 Chemical composition of the materials investigated

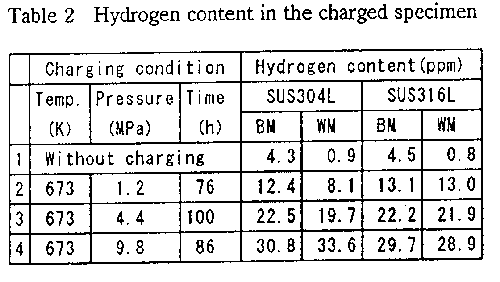

Table.2 hydrogen content in the charged specimen

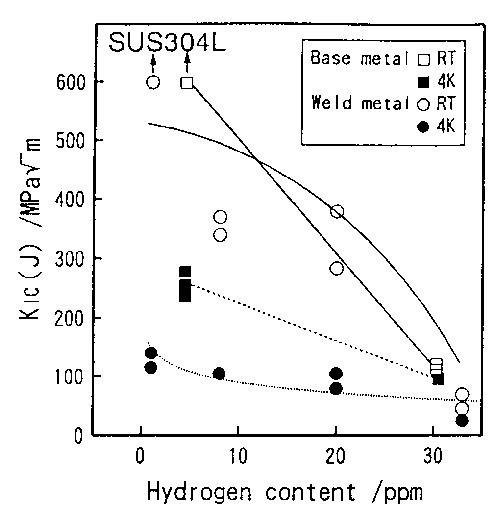

Fig.3 Effect hydrogen charging on K_IC value of SUS304L steels

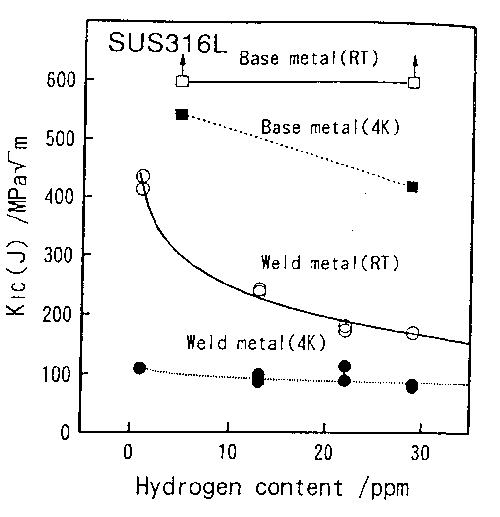

Fig.4 Effect hydrogen charging on K_IC value of SUS316L steels

Fig.5 Direction of Crack propagation
