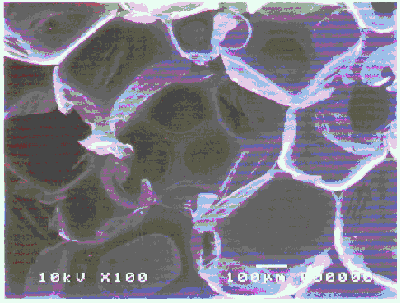

Fig. 1 Microscopic view of the pore structure of a 32 kg/m³ polyurethane foam.

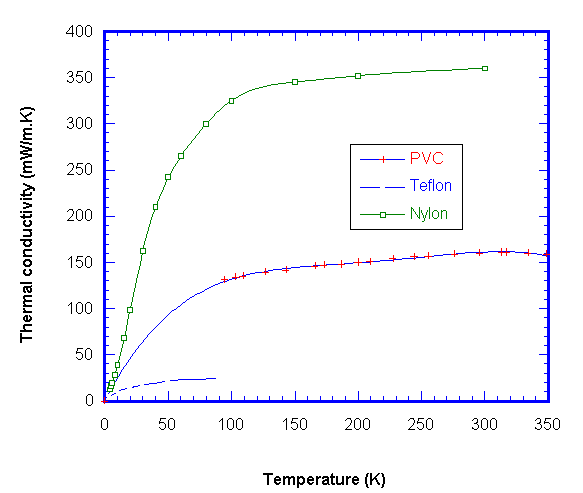

Fig. 2 Thermal conductivity of PVC⁸, Teflon⁹ and Nylon⁹.

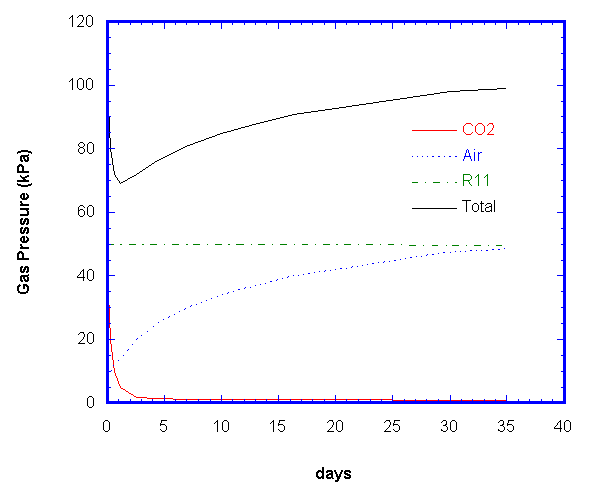

Fig. 3 Cell gas pressure variation with time for a 25 mm thick PU foam sample blown by CO2 and R11.

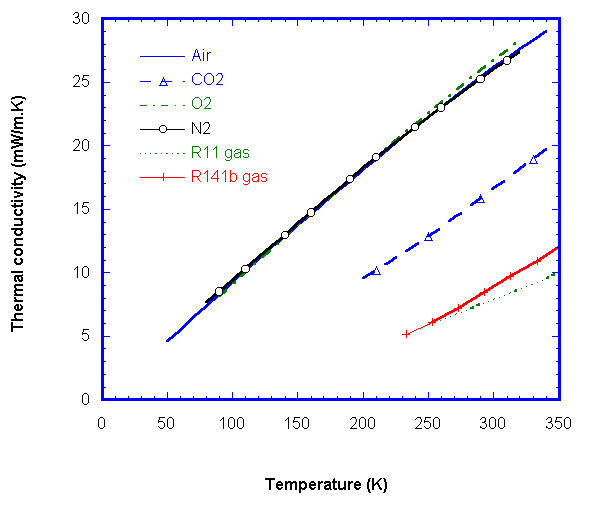

Fig. 4 Thermal conductivity of commonly used gases [Touloukian, Liley, and Saxena, 1970].

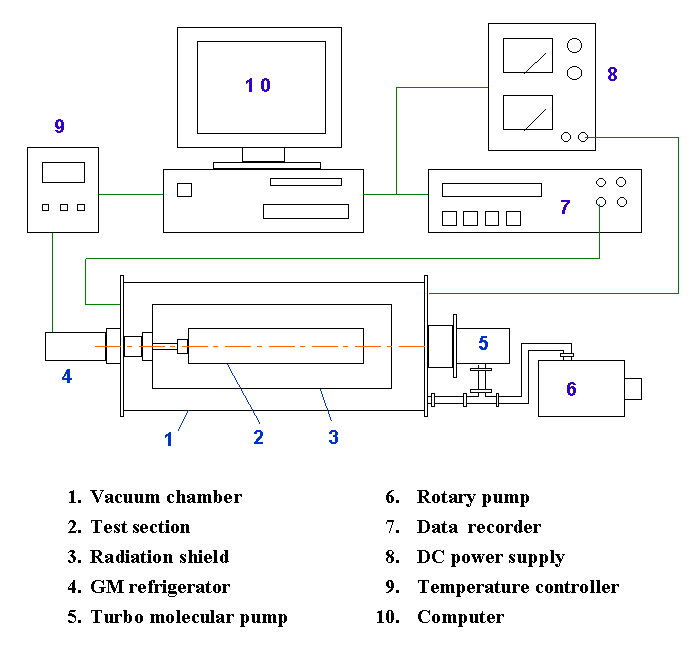

Fig. 5 The experimental setup for the thermal conductivity measurement.

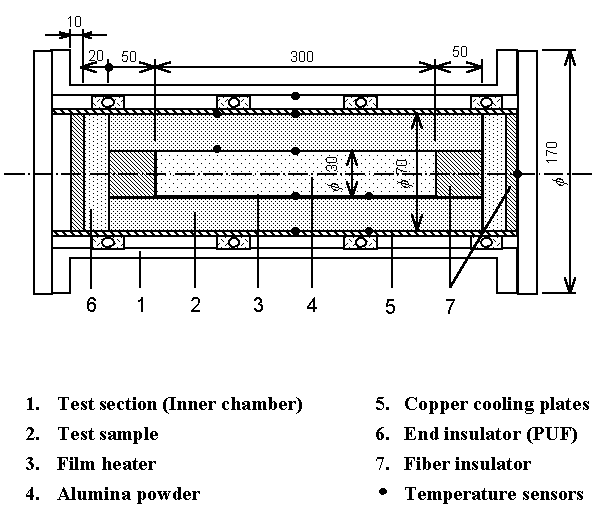

Fig. 6 Details of the test section

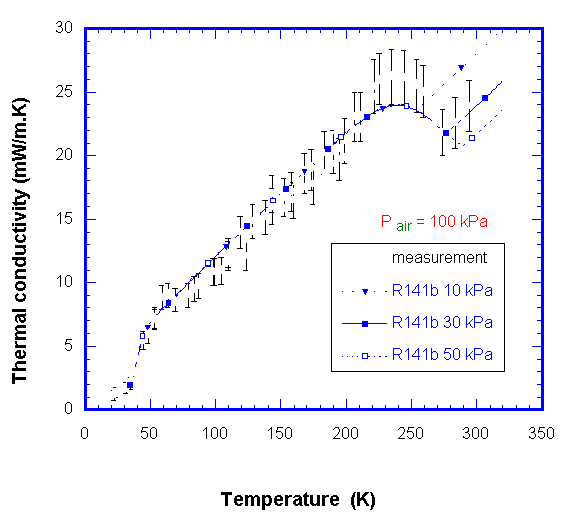

Fig. 7 Comparison of theoretical predictions of thermal conductivity with measurement results. Atmospheric pressure case.

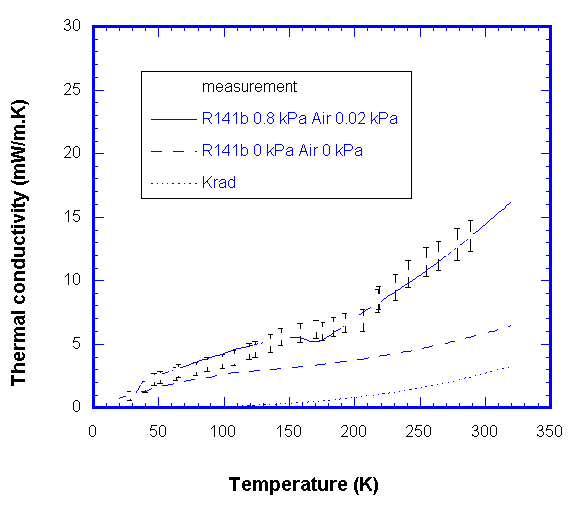

Fig. 8 Comparison of theoretical predictions of thermal conductivity with measurement results. Evacuated case.
