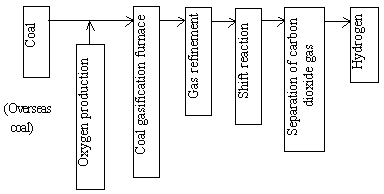

Fig. 3.1.2.1 a. Hydrogen production system by coal gasification

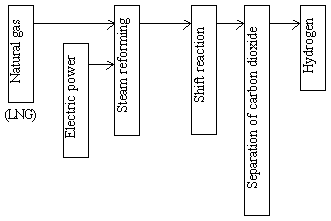

Fig. 3.1.2.1 b. Hydrogen production system by natural gas reforming

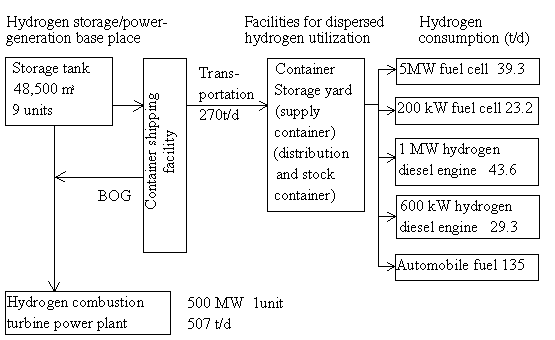

Fig. 3.1.2.2 (1) Whole flow diagram of hydrogen supply system

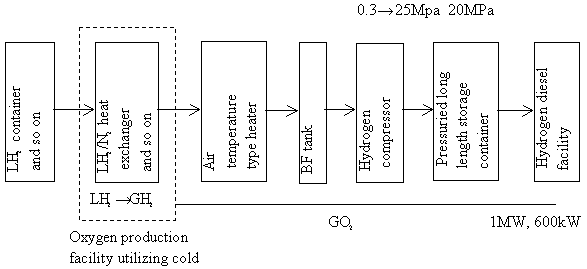

Fig. 3.1.2.2 (2) Overall system flow diagram of hydrogen supply system for hydrogen diesel engine

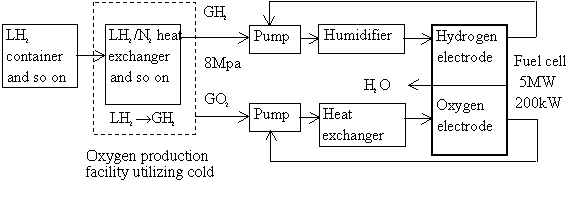

Fig. 3.1.2.2 (3) Overall system flow diagram of hydrogen supply system to fuel cell

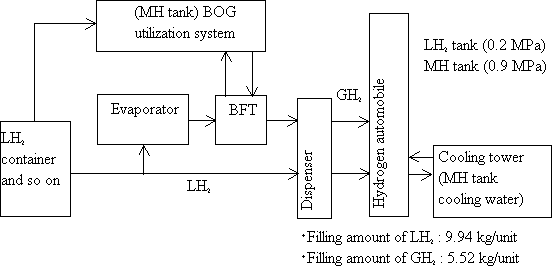

Fig. 3.1.2.2 (4) Overall system flow diagram of hydrogen supply system to hydrogen automobile

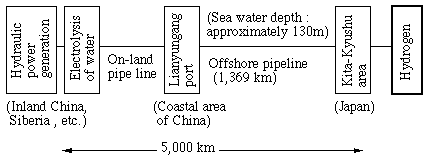

Fig. 3.1.2.3 Overall flow diagram of pipeline transportation system of hydrogen
