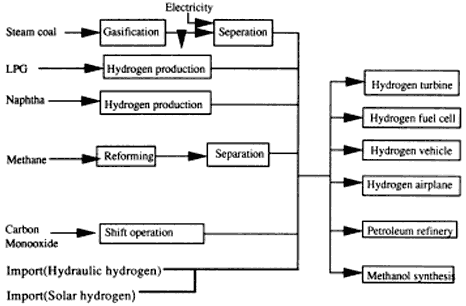

Fig.3-3-1 Flow on hydrogen in the model.

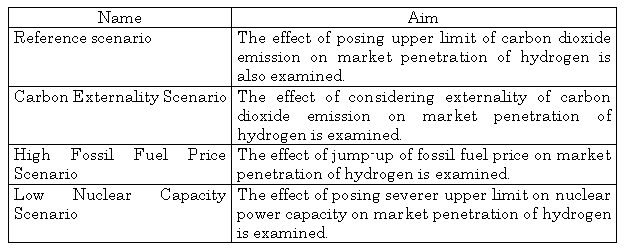

Table 3-3-1 Assumed future scenarios

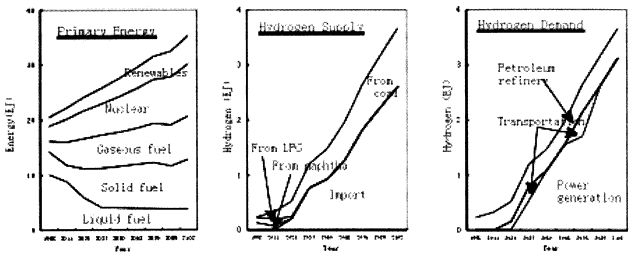

Fig. 3-3-2 An example of energy mix for the reference scenario.
(Note) Hydrogen price: 40% of the reference value, CO₂ emission from 2010: 94% of the level in 1990.

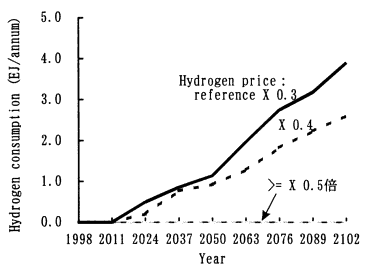

Fig. 3-3-3 Hydrogen price vs. hydrogen import
(Note) Reference scenario, hydrogen price: 40% of the reference value, CO₂
emission from 2010: 94% of the level in 1990.

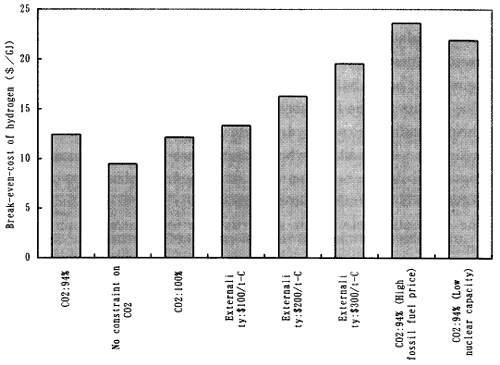

Fig. 3-3-4 Break-even-cost of hydrogen under various scenarios.
(Note) Calculated for the year 2024.

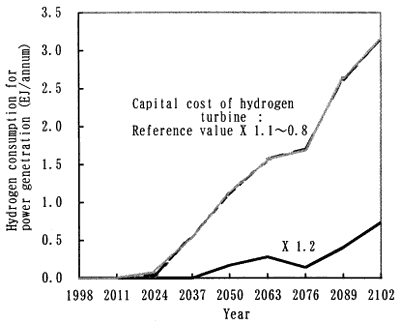

Fig.3-3-5 Capital cost of hydrogen turbine vs. hydrogen consumption
(Note) Reference scenario, hydrogen price: 40% of the reference value,
CO₂ emission from 2010: 94% of the level in 1990.

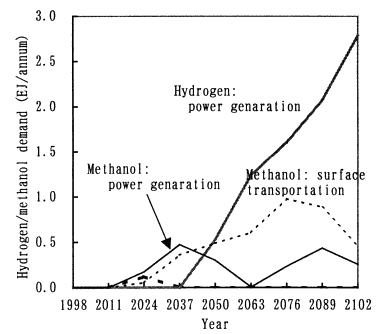

Fig. 3-3-6 An example of methanol usage as a transitional fuel
(Note) Assumed condition is the same to Fig.5 except for inclusion of methanol
and higher price of hydrogen till 2050.
